Heavy Rotations

2019 – for 2 turntables and 8 modular synths.

Heavy Rotations is a technical concept for a live electronic improvisation, relying on the use of time-code vinyl for the integrated control of spatialization and modular synthesizers. This strong connection between spatial and timbral parameters results in an enhanced spatialization experience. Heavy Rotations is composed for the EOC, using 8 modular systems and two turntables.

/images/eoc_now_heavy_1.jpg

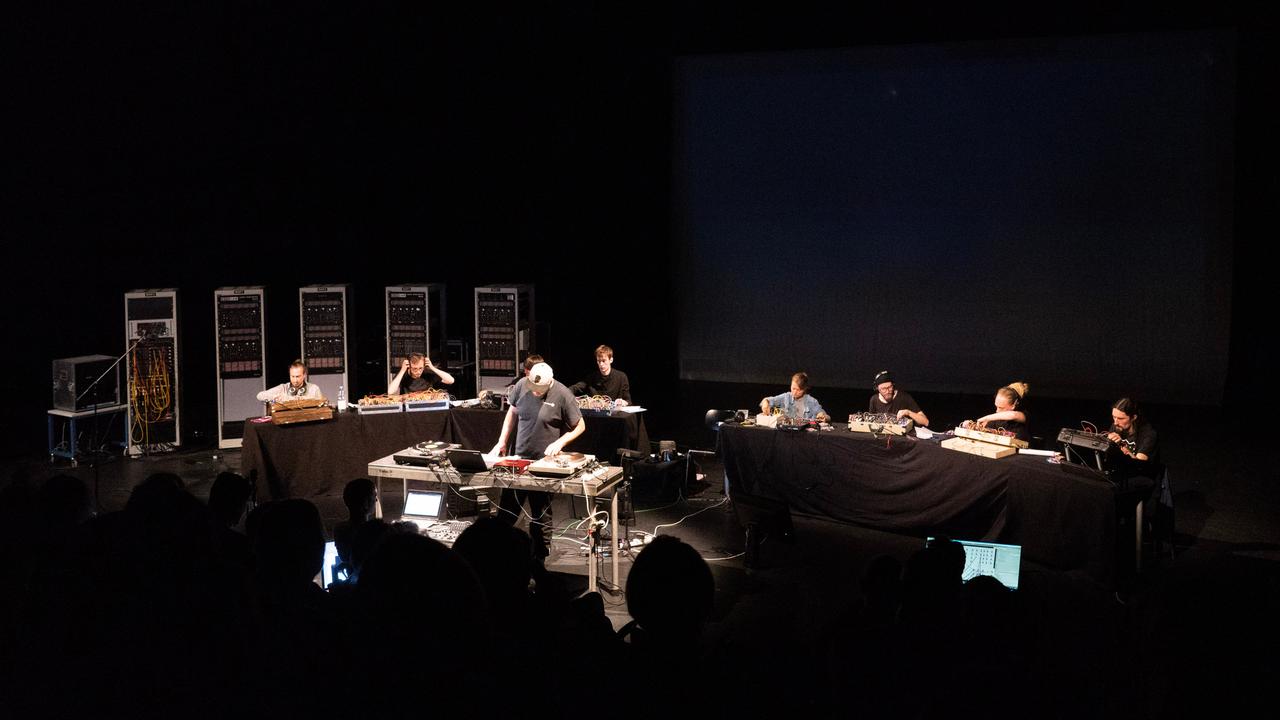

Heavy Rotations with the EOC, Copyright Dirk Rose

/images/eoc_now_heavy_2.jpg

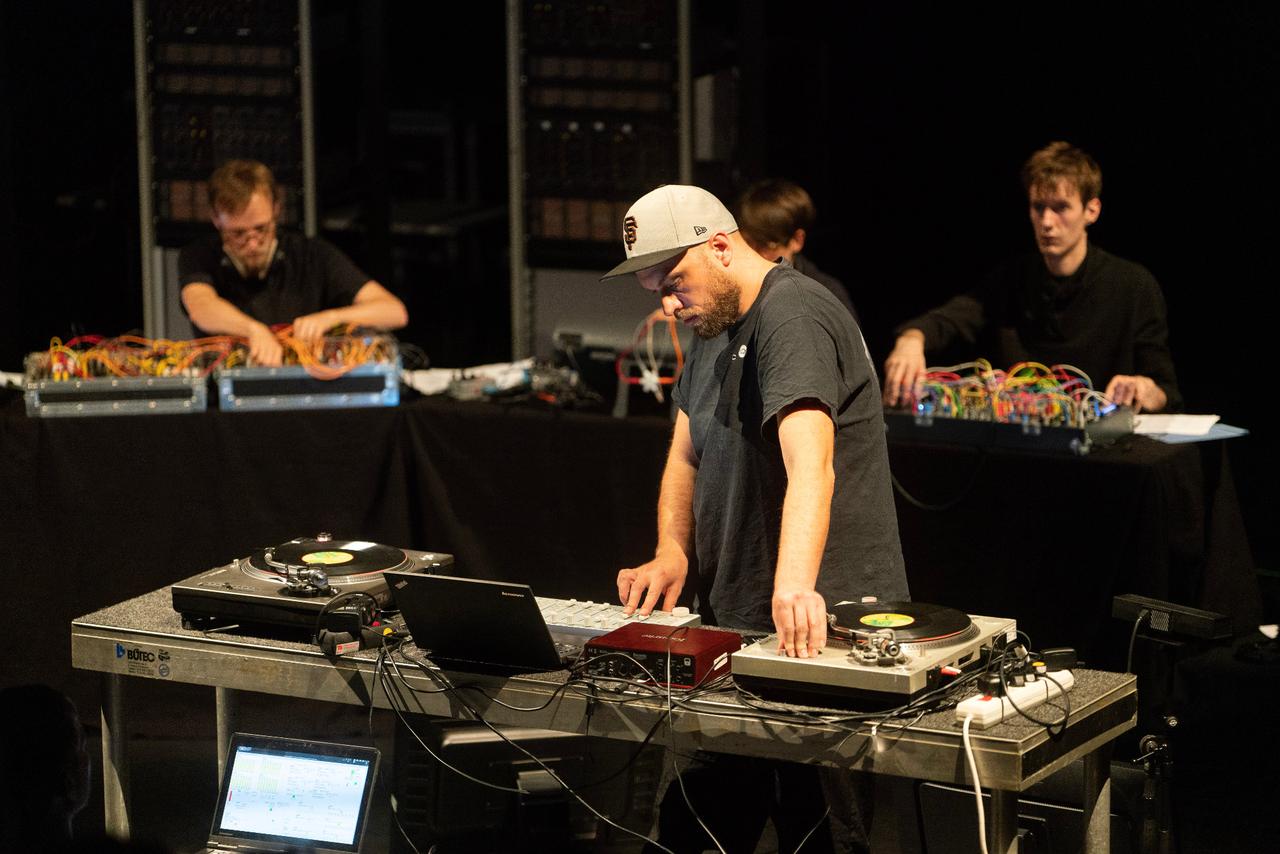

Heavy Rotations with the EOC, Copyright Dirk Rose


Technical Concept

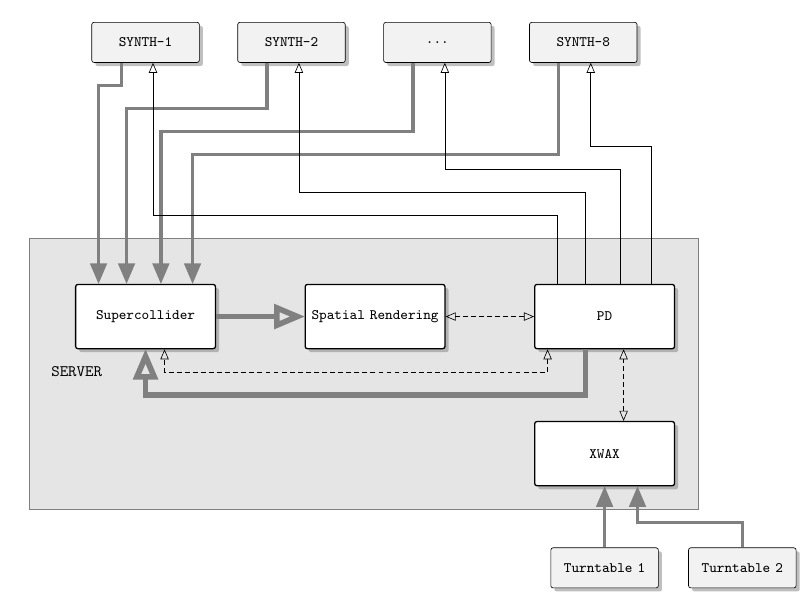

The concept is based on an adopted version of the free timecode vinyl software xwax, as well as Puredata and SuperCollider. PD is used to generate LFO signals, which are sent to the modular systems as control voltages (CV). These CV signals are patched to timbral parameters on the systems by the musicians. The synth outputs are afterwards processed with a final VCA stage in SuperCollider and finally spatialized.

/images/heavy_rotations_flow.png

Global setup for Heavy Rotations

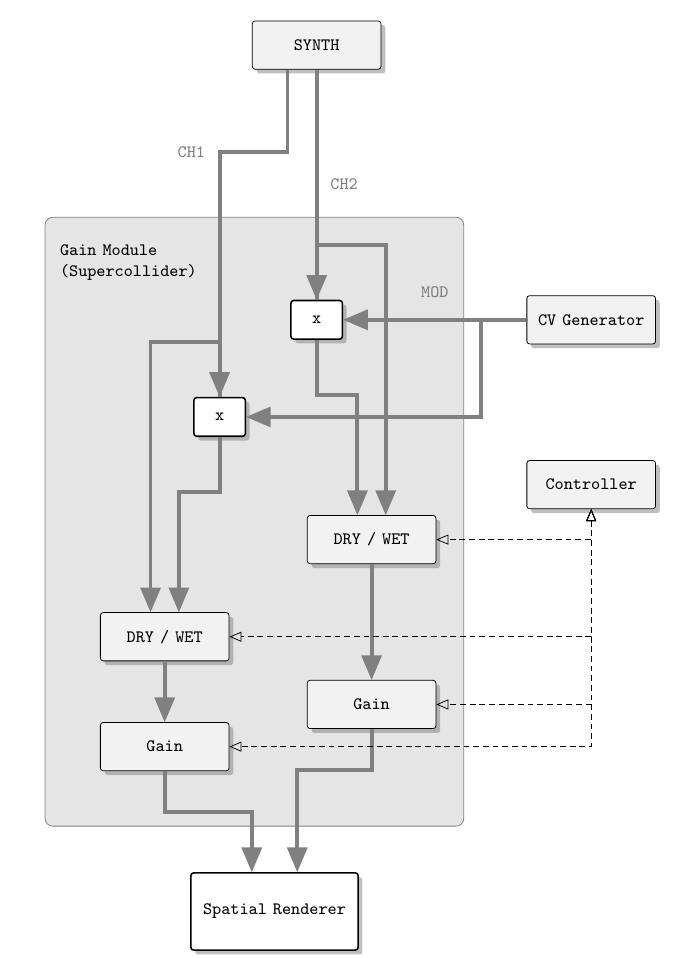

The VCA, or gain modules, change the synthesizers' signals in amplitude, depending on the LOFO signals:

/images/heavy_rotations_flow_2.png

Gain module (VCA) for a single synth.

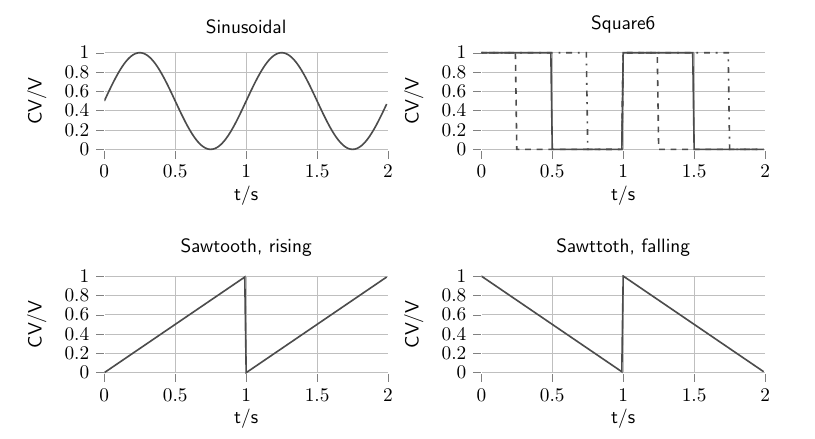

Four basic LFO waveforms can be selected during the performance. The piece starts with a soft sinusoidal modulation and moves towards an aggressive square wave, ending in a constant signal.

/images/heavy_rotations_lfo.png

LFO waveforms.


Spatial Movements

Heavy Rotations works with simple circular movements, orbiting the center of the listening space. The speed of the rotation is directly linked to the spinning speed of the turntables. This is a binaural rendering from a performance at Holzmarkt, Berlin, in 2019:


/images/eoc-holzmarkt.jpg

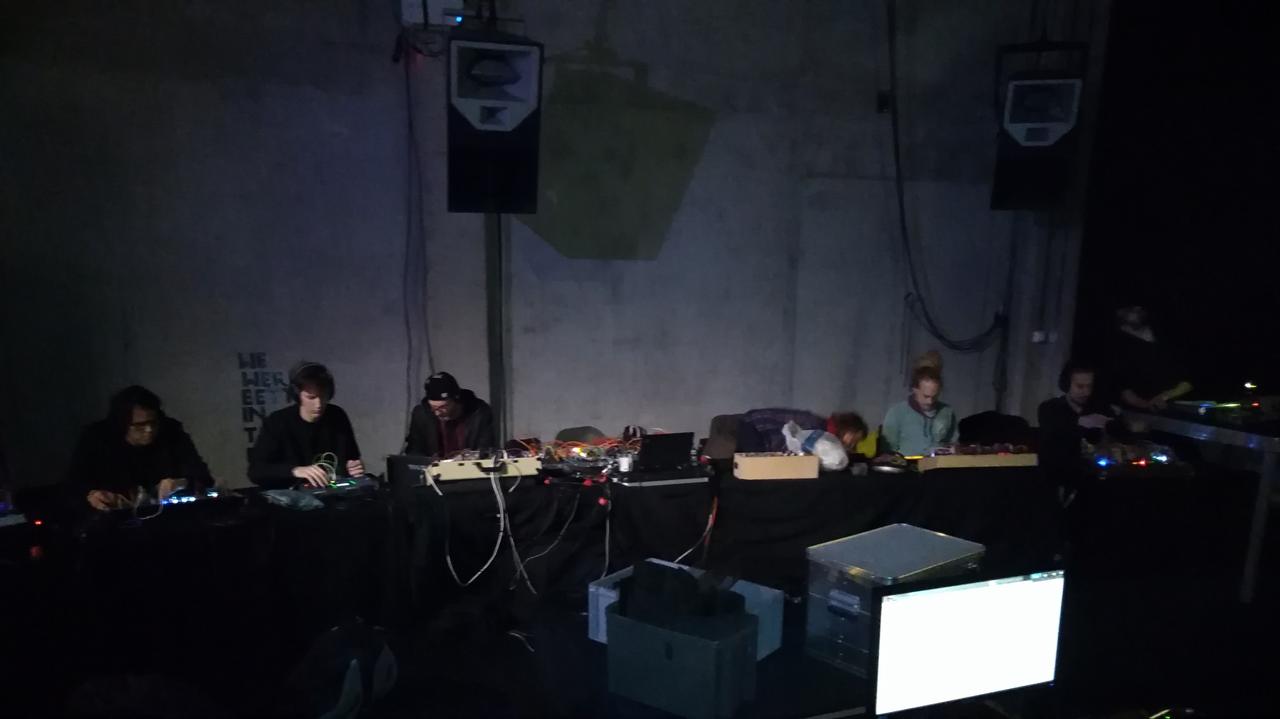

EOC at Holzmarkt, 2019
